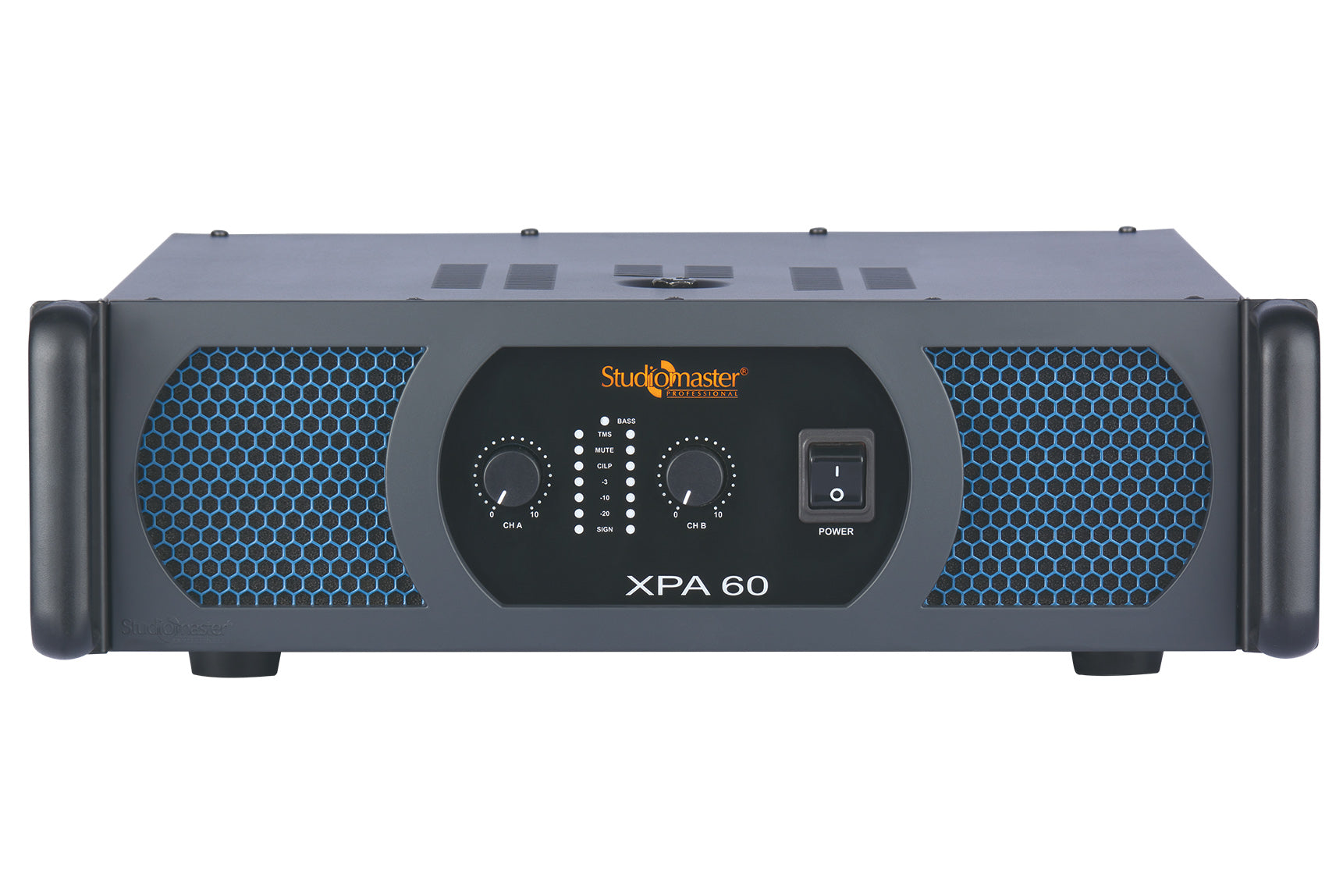

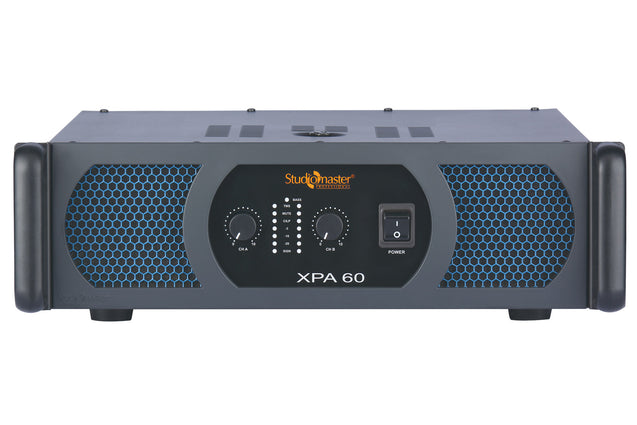

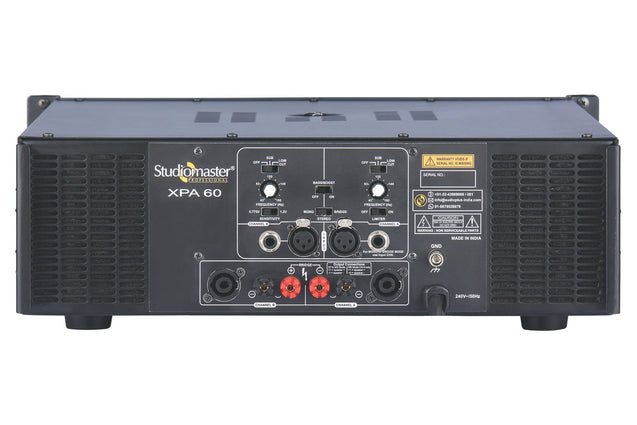

Studiomaster XPA 60 amplifier

XPA 60

• Professional-grade high-power stereo amplifier.
• High-quality balanced XLR and ¼” stereo jack input connectors.
• 3 switchable operational modes: stereo, mono and bridge
• Innovative Thermal Management System (TMS) with temperature-controlled gain variation for optimal thermal protection and uninterrupted sonic performance.
• Toroidal transformers with high-endurance cores for greater transient response and low-noise even at 2 Ohms.
• Sensitivity (0.775V or 1.2V) selection switch allows flexibility in connection of input sources.
• Limiter switch provided protects the speakers from damage due to distorted input signals.
• Responsive rotary volume control knobs.
• Low THD and high damping factor for excellent sound quality.
• High-quality glass epoxy, double-sided PTH PCBs and high-grade components ensure reliability even in tough ambient environs.
• Intelligent cooling using low-noise variable speed fans and direct-mounted over-designed heatsinks.

POWER OUTPUT

2 Ω (True RMS), 20Hz-20kHz, 1% THD

2 x 3000 W

2 Ω (EIA), 1kHz, 1%THD

2 x 5600 W

4 Ω (True RMS), 20Hz-20kHz, 1% THD

2 x 2000 W

4 Ω (EIA), 1kHz, 1%THD

2 x 3100 W

8 Ω (True RMS), 20Hz-20kHz, 1% THD

2 x 1300 W

8 Ω (EIA), 1kHz, 1%THD

2 x 1700 W

BRIDGED MODE

4 Ω (True RMS), 20Hz-20kHz,1% THD

6000 W

8 Ω (True RMS), 20Hz-20kHz,1% THD

4000 W

Damping Factor (8 Ω)

> 400 : 1 (@ 8Ω)

Frequency Range

20Hz-20kHz (± 0.5dB)

Protection

Temperature, DC, RFI, short circuit, soft-start, overload

Input Connector (Per Channel)

XLR, jack stereo 6.3mm

Output Connector (Per Channel)

Speakon and Binding Post

Dimensions (W x D x H) mm  484 x 575 x 133 (3U)

Net Weight (Kg)  37
