Studiomaster RAX 7020 amplifier
Be the first review

SKU: rax7020

In Stock

Rs. 68,733.00

Secured and trusted checkout with
Secured and trusted checkout with

RAX 7020

  • High-current toroidal transformers with high-endurance cores for a wide transient response.
  • Audio-grade rectifier capacitors for superior sonic performance.
  • High-quality double-sided PTH PCBs and components ensure reliability even in tough ambient environs.
  • 3 switchable operational modes: stereo, parallel, and bridge.
  • Intelligent cooling via large 120mm temperature-controlled high speed fans.

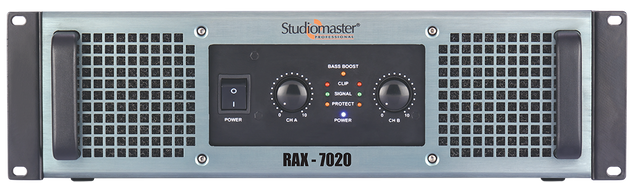

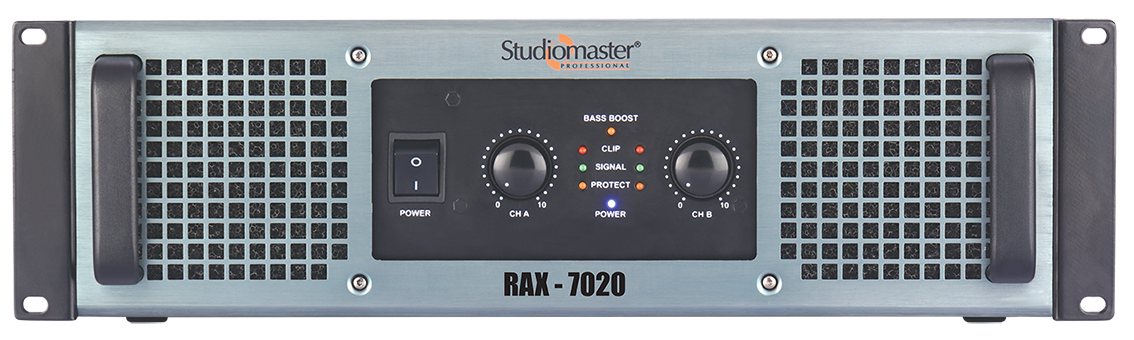

  • LED indicators on the front panel for power, signal, clip, bass boost, and protect modes.
  • Classy brushed aluminum finish front dial plate.
MODEL

RAX 7020

POWER OUTPUT

2 Ω (True RMS),20Hz-20kHz,1% THD

2 x 3500 W

2 Ω (EIA), 1kHz , 1%THD

2 x 4500 W

4 Ω (True RMS),20Hz-20kHz,1% THD

2 x 2400 W

4 Ω (EIA), 1kHz , 1%THD

2 x 3100 W

8 Ω (True RMS),20Hz-20kHz,1% THD

2 x 1400 W

8 Ω (EIA), 1kHz , 1%THD

2 x 1800 W

BRIDGED MODE

4 Ω (True RMS),20Hz-20kHz,1% THD_

7000 W

8 Ω (T rue RMS),20Hz-20kHz,1% THD

4800 W

Damping factor (8 Ω)

> 350:1

Frequency Range

20Hz-20kHz (± 0.5dB)

Protection

Temperature, DC, Short Circuit, Soft-Start

Input Connector (Per Channel)

XLR, jack stereo 6.3mm

Output Connector (Per Channel)

Speakon and Binding Post

Dimensions (W x D x H) mm

482 x 527 x 133 (3U)

Net Weight (Kg)

34
