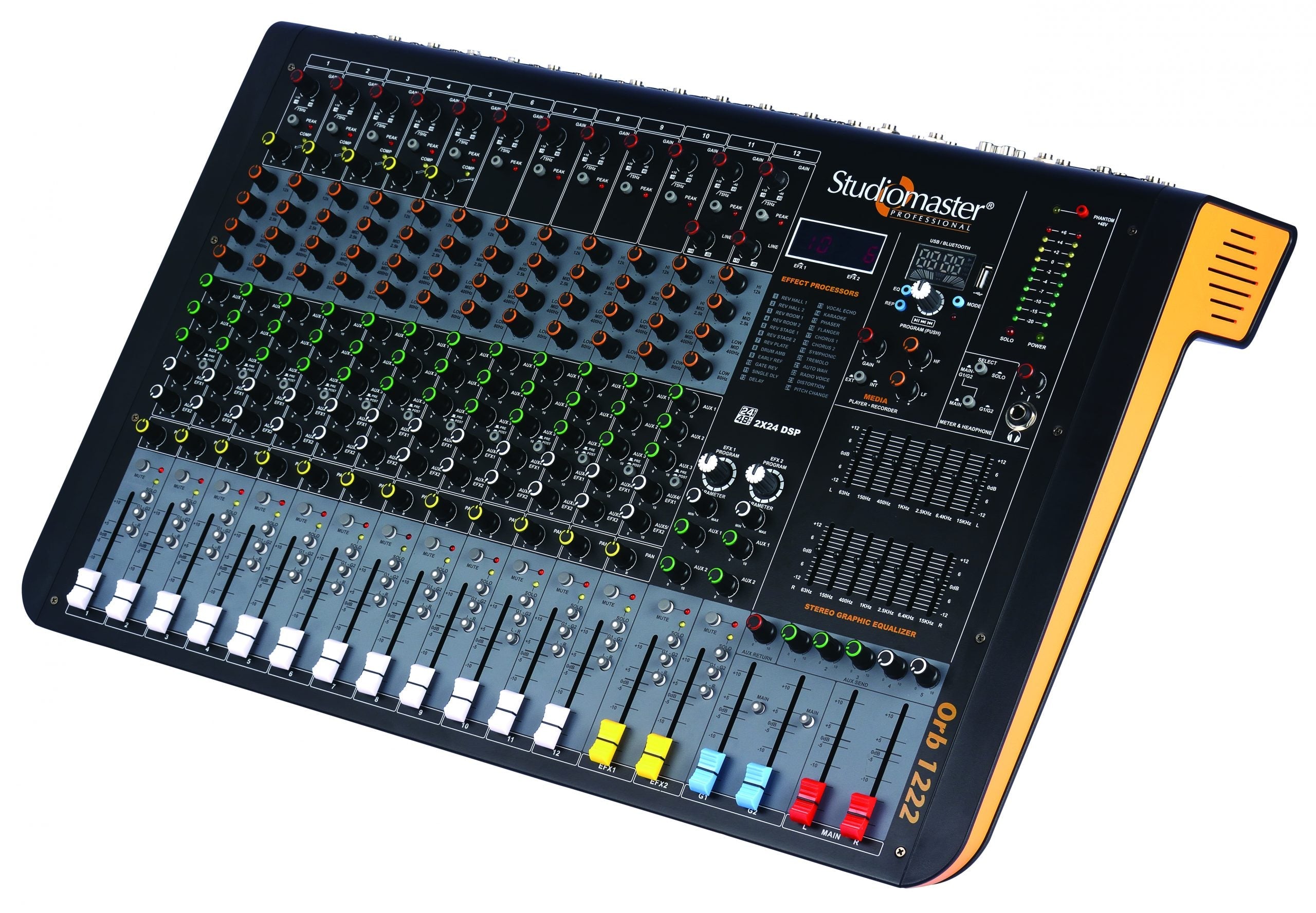

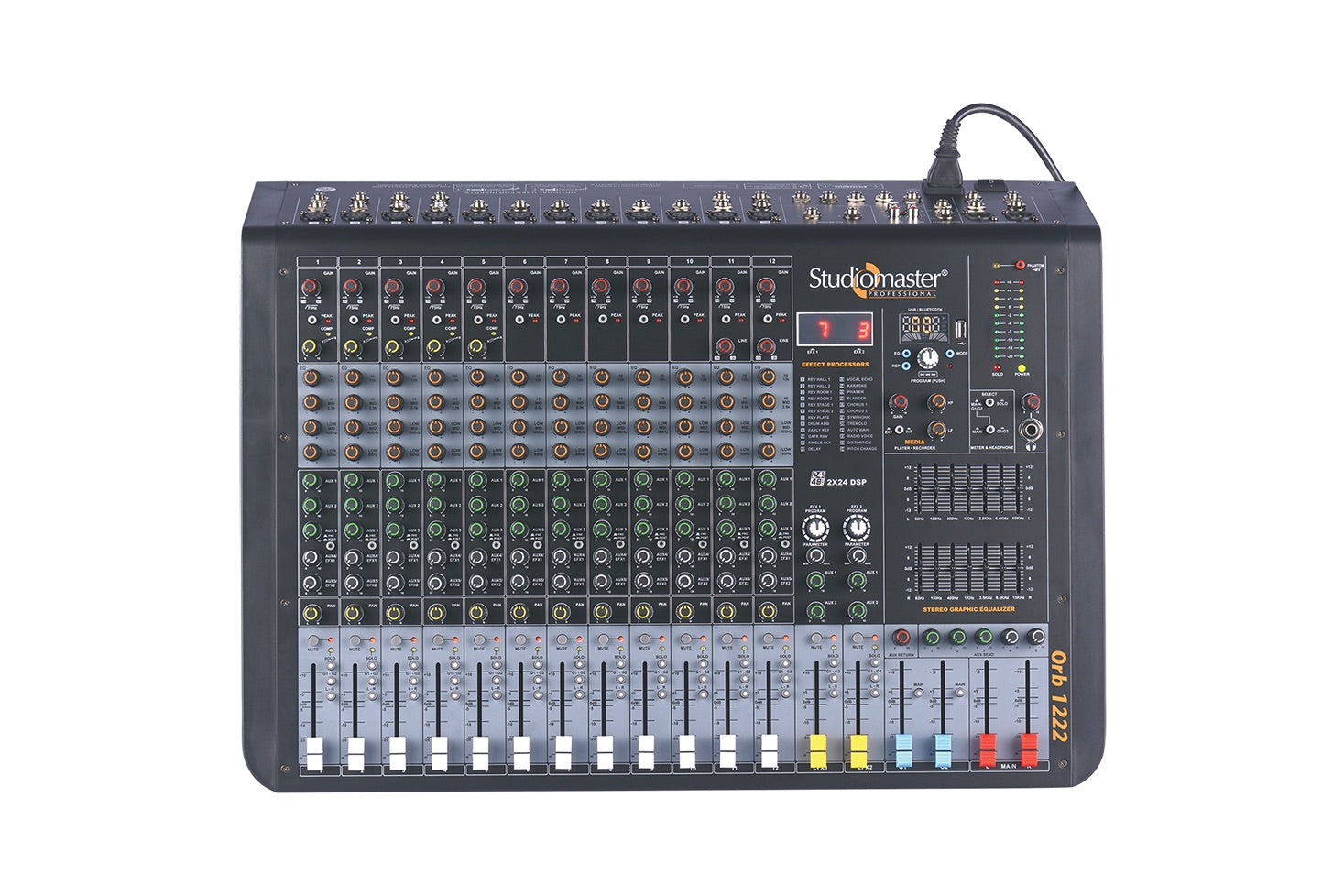

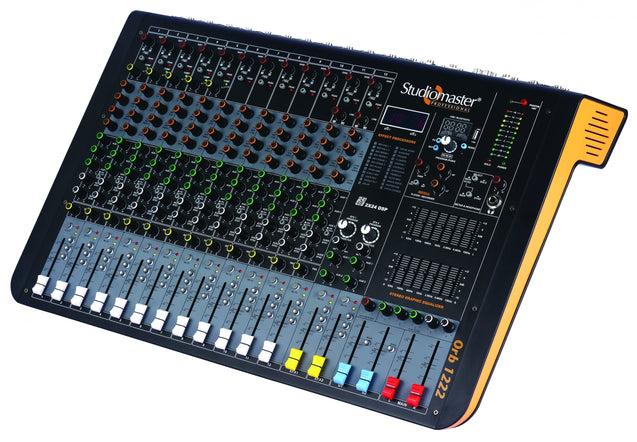

Studiomaster Orb 1222 Mixer

ORB 1222

• Professional audio mixing consoles with 12 mic / 14 line inputs.
• MON:Ster (mono-stereo) inputs for full flexibility.
• One Knob Compressor on channels 1-5.
• Ultra low-noise preamps with wide headroom and dynamic range.
• Dual multi-EFX processor with 24 DSP presets and editable parameters.
• Provisions to route EFX to monitor via Aux 1 and Aux 2.
• Built-in USB MP3 media player and recorder with Bluetooth.
• Level control, 2-band EQ with internal/external media input selection.
• 75Hz low cut on mono channels.
• 4-band EQ on all inputs.
• 5 Aux sends – Aux 1-3 (with pre/post selection) and Aux 4-5 (post only).
• Stereo AUX returns.
• Balanced XLR and ¼” jack main outputs.
• 2 sub groups with individual ¼” outputs.
• Insert (send/return) on first 4 mono channels and main output.
• Mute, solo, group (G1-G2) and main (L-R) routing per channel.
• Peak, comp, mute and solo LEDs per channel.
• Stereo RCA input and record output.
• Headphone output with level control.
• Globally switched +48V Phantom power supply.
• Responsive 60mm faders.
• 7-band stereo graphic equalizer on main output.
• Dual 10-segment LED meter for main, group and solo outputs.
• Ergonomic angled-design for better visibility.

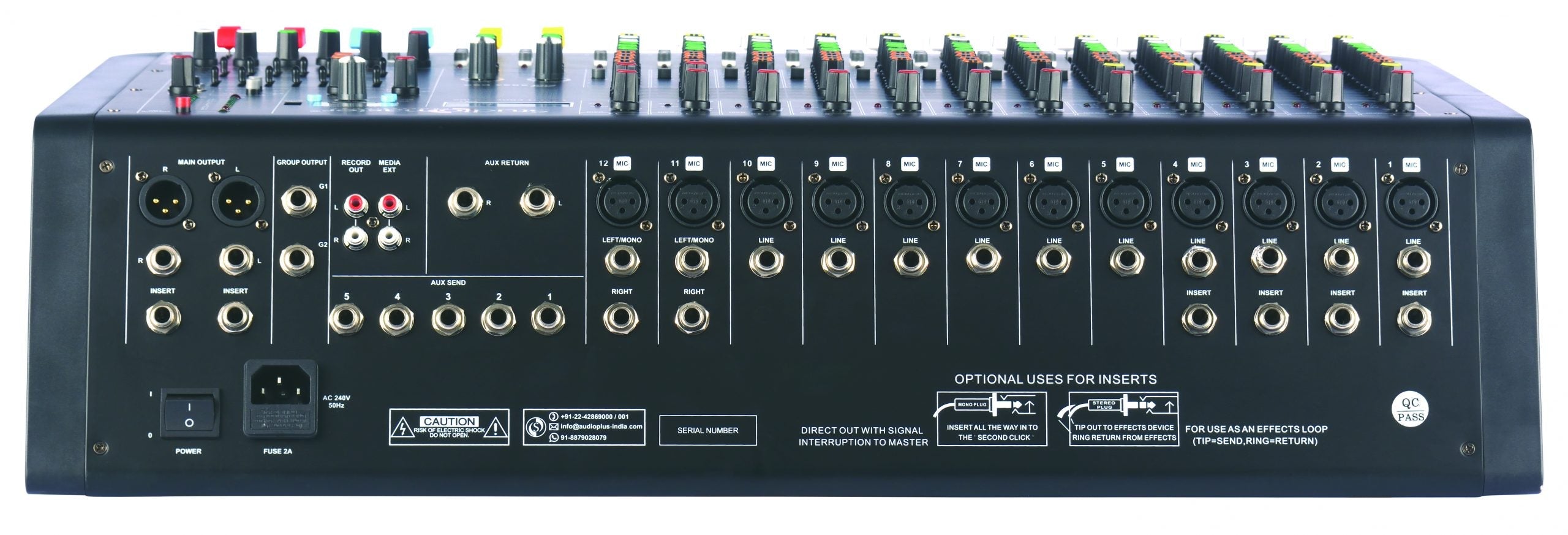

• Clutter-free rear panel input and output connectivity.
