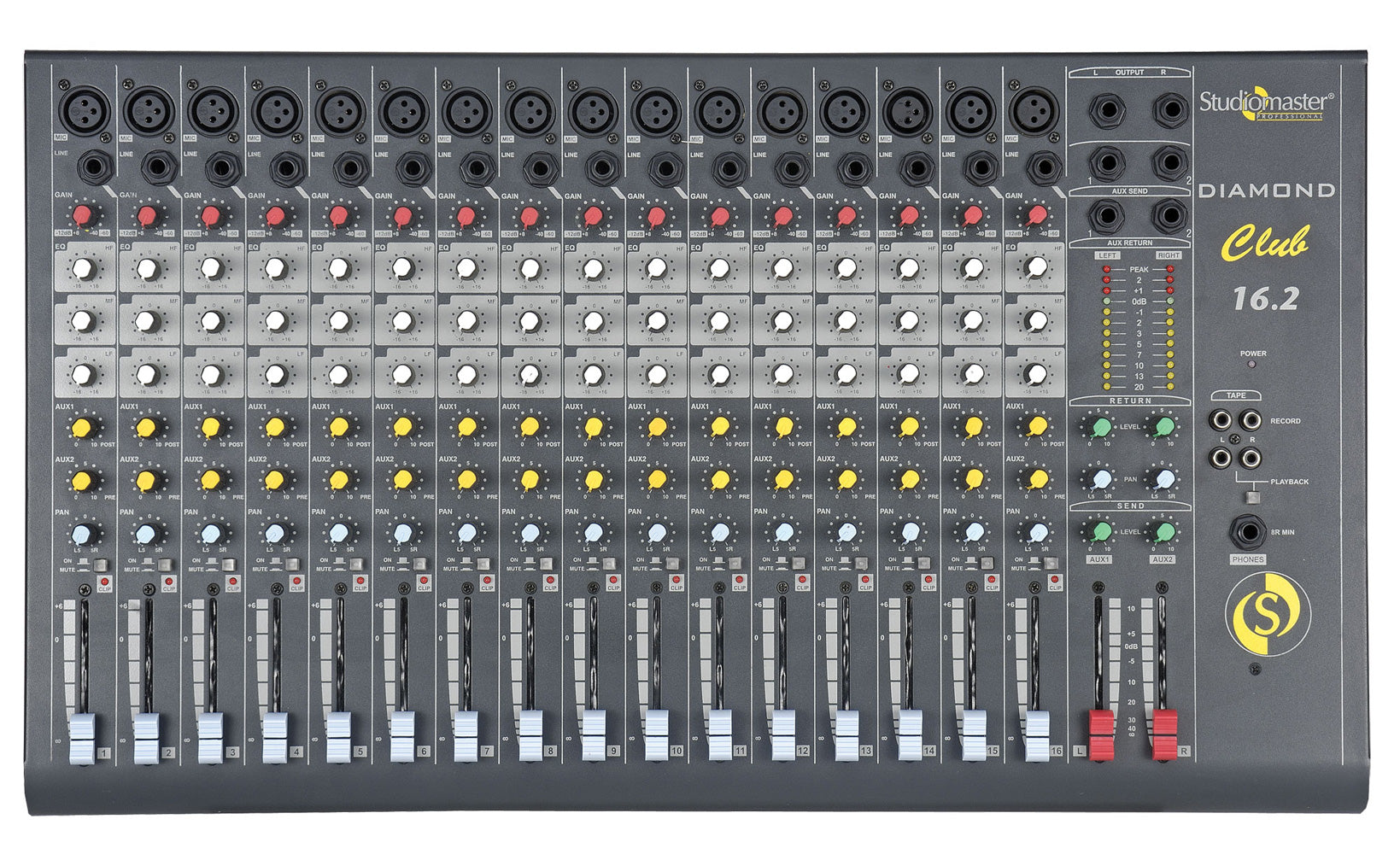

Studiomaster Diamond Club 16.2 Mixer
Be the first review

SKU: studio8282

In Stock

Rs. 23,074.00

Secured and trusted checkout with
Secured and trusted checkout with
00 Days
07 Hours
07 Minutes
07 Seconds

Features:



  • 16 Mic/Line

    •
  • •

    Balanced Mic/Line Inputs

    •
  • •

    Gain control with 3 Band EQ per channel.

    •
  • •

    2 Aux Sends/ Returns.

    •
  • •

    1 pre & 1 post aux sends rotary control per channel.

    •
  • •

    L/R Pan Pot, Illuminated Mute Switch & Clip LED per Channel.

    •
  • •

    12 segments L/R LED meter for Master Level.

    •
  • •

    Stereo Tape in/tape out, Headphone out.

    •
  • •

    Blue Power on LED

    •
  • •

    ¼ TRS, L/R Main Output.

    •
  • •

    Elegant Shape – Curve front

    •
  • •

    Stylish Grey panel

  • Specification
  • MODEL - DC 16.2
  • Nominal Gain (Mic/Line) -  60dB/40dB
    Max Gain (Mic/Line) - 76dB/56dB
    INPUT LEVELS SENSITIVITY

    Mic (Gain Min/Gain Max)

    -12dBu / -60dBu

    Line (Gain Min /Gain Max)

    +8dBu / -40dBu

    INPUT IMPEDENCE

    Mic Input

    Typically 5K Ω balanced

    Line input

    20K Ω (Balanced) /10K Ω (Unbalanced)

    Main Output level (Nominal / Max)

    0dBu (0.775V RMS) / +17dBu (5.5V RMS)

    Main Output Impedance

    <50 Ω

    Frequency Response

    25Hz to 19KHz (+0/-1 dB)

    Total Harmonic Distortion

    Better than 0.8%

    Signal to Noise Ratio

    -76 dB

    Clip indication

    4 dB prior to true clip

    Equalisation (Treble/Mid/Bass)

    ±16dB @ 10KHz/2.5KHz/100 Hz

    EFX & USB

    –

    Power Supply

    150V~250V AC/50Hz

    Dimensions (W x D x H in mm)

    555x376x89

    Net Weight (Kgs.)

    10

    •
