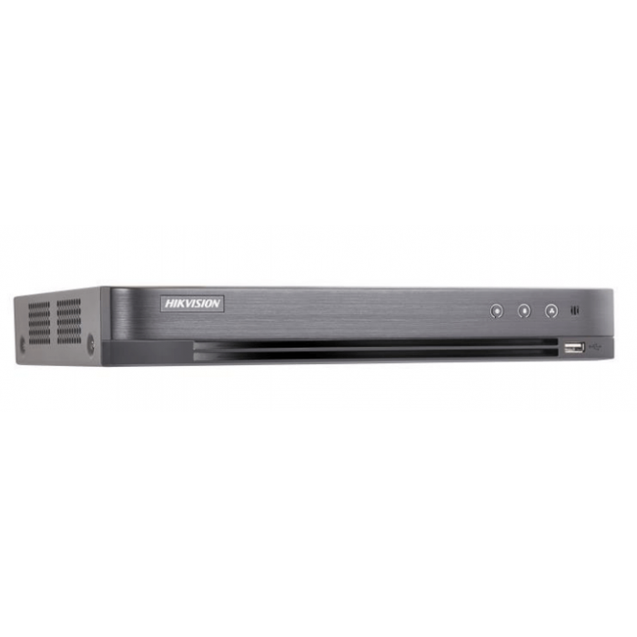

  • Hikvision 4 channel Dvr HIGH DEFINITION 5MP Model DS-7B04HUHI-K1
Hikvision 4 channel Dvr HIGH DEFINITION 5MP Model DS-7B04HUHI-K1
Be the first review

SKU: 5mphik

In Stock

Rs. 5,450.00

Secured and trusted checkout with
Secured and trusted checkout with

DELIVERY TIME : 4 T0 8 BUSINESS DAYS



Features Hikvision DS-7B04HUHI-K1 Dvr System

♦ Hikvision DS-7B04HUHI-K1 Dvr
♦ H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
♦ Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
♦ Connectable to H.265+/H.265/H.264+/H.264 IP cameras
♦ Up to 5 MP resolution for recording
♦ HDMI output at up to 4K (3840 × 2160) resolution for DS-7208HUHI-K2
♦ Long distance transmission over UTP and coaxial cable
♦ 4-ch synchronous playback
♦ Warranty:2 years.

SPECIFICATIONS:
Brand Hikvision
Model No Hik DS-7B04HUHI-K1
Type Turbo HD DVR
VIDEO/AUDIO INPUT
Audio Input 4-ch
Video Compression H.265+/H.265/H.264+/H.264
Analog and HD-TVI video input 4-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types Support HDTVI input: 5MP,4MP,3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVBS input
Video Input Interface BNC (1.0 Vp-p, 75Ω)
Audio Compression G.711u
Audio Input Interface RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st channel of audio input)
VIDEO/AUDIO OUTPUT
CVBS Output 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480
HDMI/VGA Output 1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz
Recording resolution 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate Main stream: 5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate 32 Kbps-10 Mbps
Stream Type Video/Video&Audio
Two-way Audio 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output 1-ch RCA(Linear, 1kΩ)
Audio Bit Rate 64kbps
Dual Stream Support
Playback Resolution 5MP/4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF
Synchronous Playback 4-ch
NETWORK MANAGEMENT
Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF
HARD DISK DRIVER
Interface Type 1 SATA Interface
Capacity Up to 8 TB capacity for each disk
EXTERNAL INTERFACE
Network Interface 1; 10M / 100M self-adaptive Ethernet interface
USB Interface: 2 USB 2.0 Interfaces
Serial Interface 1; standard RS-485 serial interface, half-duplex
GENERAL
Power Supply 12V DC
Consumption ≤ 10W(without hard disks)
Working Temperature -10 ºC to +55 ºC (14 ºF to 131 ºF)
Working Humidity 10% to 90%
Dimensions 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight ≤ 1.16 kg (2.6 lb)
Warranty: 2 years
