Ahuja Wireless Microphone Model AWM-495VHL

Be the first review

Availability: In Stock Out of stock

Rs. 4,567.00

Secured and trusted checkout with

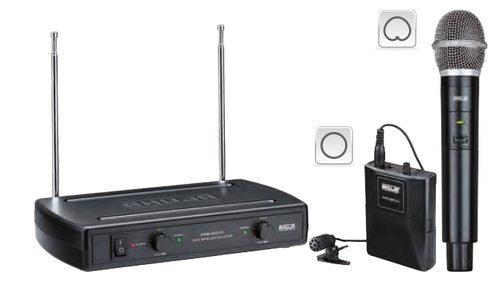

Compact, lightweight, Dual Channel VHF Wireless Microphone System available in different frequency groups.
Combination of a handheld dynamic transmitter & a bodypack transmitter for a wide variety of applications.
Internal antennas in the transmitter and two telescopic antennas in the Receiver for clear and distortion free reception.
Receiver operates on 12V DC through an AC Adaptor supplied alongwith the system. Each transmitter operates with a 2x1.5V AA Pencil Cells.
Transmitters have 2-position ON/OFF slide switch.
Audio output from receiver available at OUT 1 & OUT 2 individually and as mixed output at OUT 1 + 2.
Ideal for: PA Applications... Stage & Auditoriums... Seminar Halls... Places of Worship... Recreation Centres...

HANDHELD TRANSMITTER	.
RF Output Power	15mW (Max.)
Modulation Mode	FM (F3E)
Microphone Element	Dynamic, Cardioid
Dynamic Range	80dB
Frequency Response	50-12,000Hz
Current Consumption	≤130mA
Power Requirement	3V (2 × 1.5V AA Pencil Cells)
Controls	Transmitter ON/OFF Switch
Indication	Red LED for indicating transmitter ON
Dimensions	ø55 (L248) mm
Weight	180g (w/o battery)
TIE-CLIP TRANSMITTER	.
RF Output Power	15mW (Max.)
Modulation Mode	FM (F3E)
Microphone Element	Condenser, Omnidirectional
Dynamic Range	80dB
Frequency Response	80-15,000Hz
Current Consumption	≤130mA
Power Requirement	3V (2 × 1.5V AA Pencil Cells)
Controls	Transmitter ON/OFF Switch, Volume Control
Indication	Red LED for indicating transmitter ON
Dimensions	W67 x H32 x D95 mm
Weight	60g (w/o battery)
RECEIVER	.
Frequency Stability	± 0.005% Quartz Crystal Controlled
Receiving Method	Non-diversity
Audio Output	Channel 1: 0-55mV / 1kΩ, Channel 2: 0-55mV / 1kΩ Channel 1+2: 0-55mV / 1kΩ
Signal to Noise Ratio	> 80dB
Distortion	< 0.5%
Frequency Response	50-15,000Hz
Antenna	Telescopic
Power Requirement	240V AC 50Hz for AC adaptor (supplied along with)
Controls	Power On / Off Switch, Volume Control for Channel-1, Volume Control for Channel-2
Indications	Red LED for Power ON, Green LED for RF reception on Channel-1, Green LED for RF reception on Channel-2
Dimensions	W230 x H42 x D150 mm
Weight	353g
