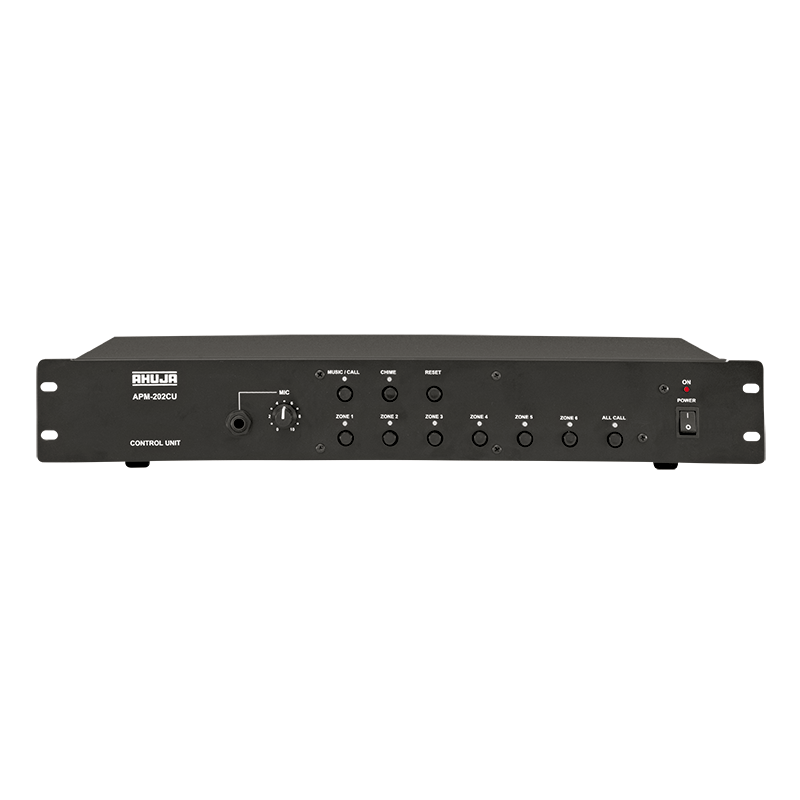

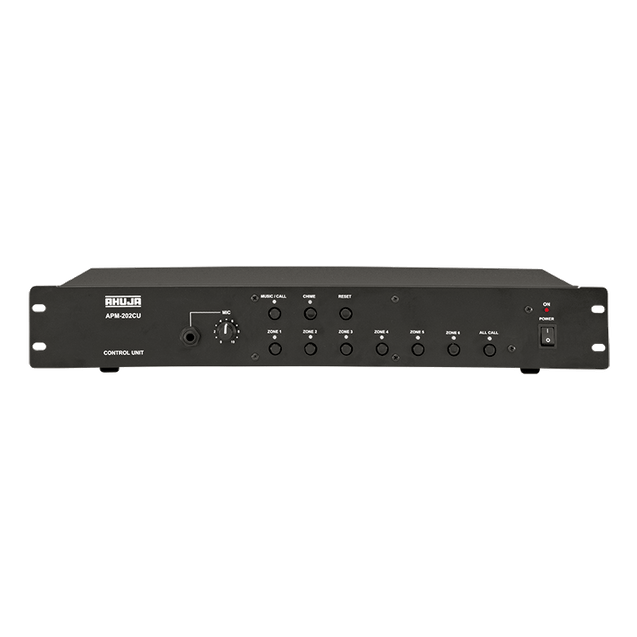

Ahuja Paging Controller APM 202CU

Be the first review

Availability: In Stock Out of stock

Rs. 18,415.00

Secured and trusted checkout with

APM-202CU is a rack mounting switcher / control unit which works with APM-201RM and upto 2 amplifiers to form a 6 zone zonal paging system with multi level priority and switchable background music.
6 Zone Switcher / Paging Control Unit for use with APM-201RM.
6 Zone Selector switches, plus ALL CALL switch.
Provision for two 100V input signals, one for speech and one for background music.
Priority of speech over background music.
Provision for routing background music source to selected zones.
Provision to make announcements from the control unit.
Status monitoring of all zones.
Provision for emergency trigger input and alarm input with highest priority.
Standard 19” rack mounting chassis.

Switching Signal Level	100V (Nominal)
Inputs (Nominal)	3 x APM-201RM (1V/10k balanced), 1 x Mic (1mV/4.7k), Speech Amp (100V), Music Amp (100V), Alarm (100mV).
Switches	6 Zone Selector switches, All Call, Chime, Reset, Music/Call Selector, Power ON/OFF.
Controls	Mic Level, Chime level, Alarm level
Power Supply	AC 220-240V, 50/60Hz; DC 24V (2 x 12V Car Battery)
Dimensions	W483 × H75 × D300
Weight	4.8kg
