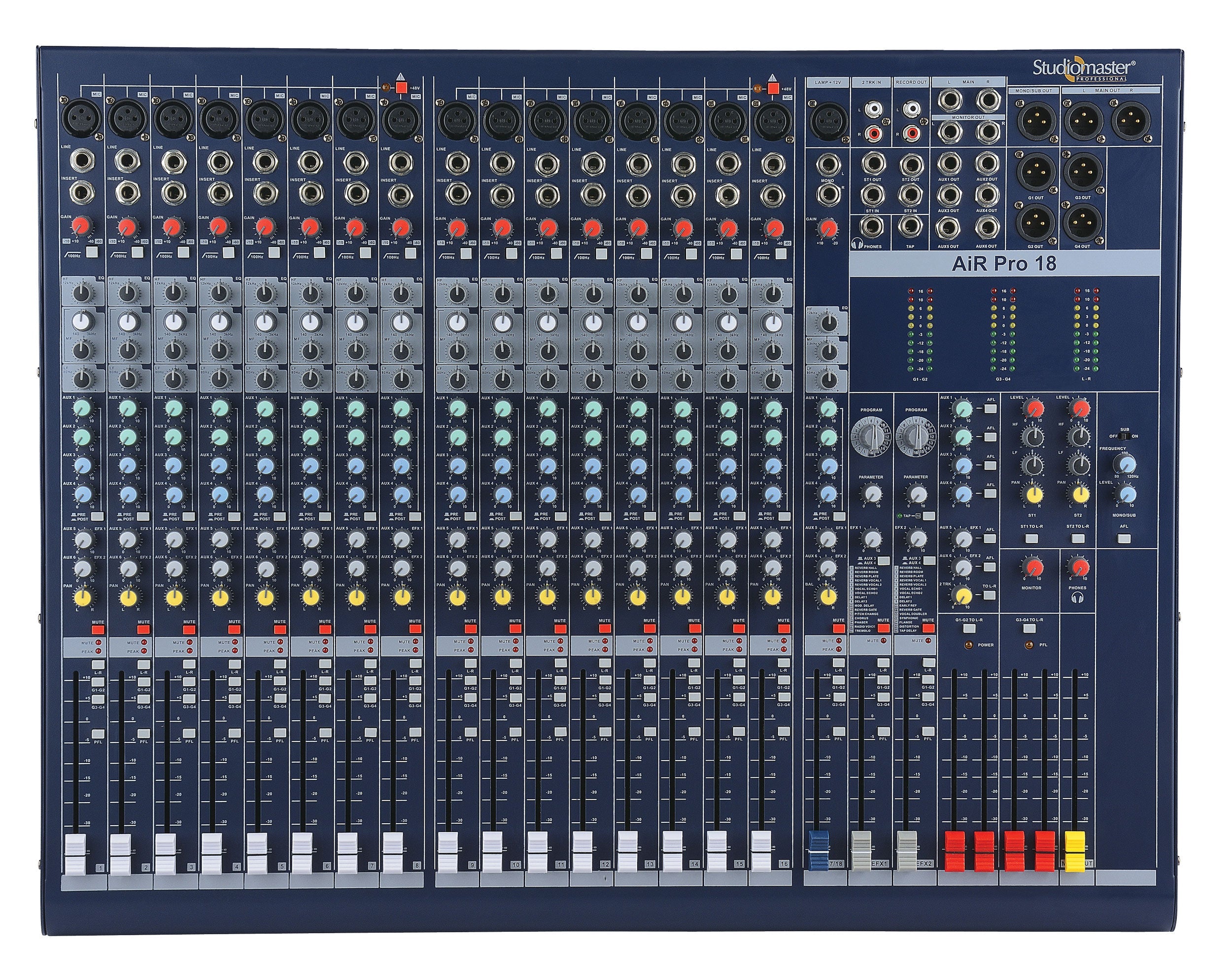

Studiomaster AIR Pro 18 Mixer
Be the first review

SKU: airpro18

In Stock

Rs. 46,957.00

Secured and trusted checkout with
Secured and trusted checkout with

AIR PRO 18

  • Input Mixer (16 Mic / Line + 1 Stereo Input).



  • 6 AUX Channels (4 pre, 2 post).



  • Provision on board to route EFX to monitors (via AUX 3 & AUX 4).



  • 4 Sub Group with individual outputs.



  • Split global Phantom power from 1-8 & 9-16.



  • Mono sub output with low frequency selection.



  • 3-band EQ with Mid-sweep on mono inputs.



  • 3-band EQ on stereo inputs.



  • Inserts on mono channel.



  • Mix & Group Routing on each channel.



  • Stereo AUX Return.



  • 100mm faders.



  • PFL switch on each channel.



  • 100Hz Low cut on each mono channels.



  • Peak & Mute LED per channel.



  • 12 V Lamp Socket.



  • Balanced XLR & Jack main outputs
MODEL

AIR PRO 18

Nominal Gain (Mic/Line/Stereo Line)

60dB/40dB/20dB

Max Gain (Mic/Line/Stereo Line)

80dB/60dB/40dB

INPUT LEVELS SENSITIVITY

Mic (Gain Min/Gain Max)

-10dBu / -60dBu

Line (Gain Min /Gain Max)

+10dBu / -40dBu

Stereo Line (Gain Min /Gain Max)

+10dBu / -20dBu

INPUT IMPEDENCE

Mic Input

1.5 KΩ Balanced

Line input

20KΩ (Balanced) /10KΩ (Unbalanced)

Main Output & Group Output (Nominal / Max)

+0dBu (0.775V RMS) / +20dBu (7.75V RMS)

Frequency Response

20Hz to 20KHz (+0/-1 dB)

Total Harmonic Distortion

< 0.02%

Signal to Noise Ratio

-80dB

Clip indication

5dB prior to true clip

EQUALISATION

Mono Mic [Treble/Mid(with sweep)/Bass]

±16dB @ 12KHz/140Hz-3KHz/80 Hz

Stereo Mic/Line (Treble/Bass)

±16dB @ 12KHz/80Hz

Phantom Supply

+48V (Split Global for 1-8 & 9-16 Channels)

Dimensions (W x D x H)mm

645 x 506.5 x 111.5

Net Weight (Kgs.)

12
